(A) Printing head of 8dot/mm high resolusion:
Our unique thermal control circuit will realize homogenized and smooth printing without blot and scratch.

(B) Naked type and simple building-in:
Compact and light-weight unit of control circuit and software will be easily built in various
apparatus.

(C) 210mm wide and about 30meters roll paper for recording to be set in the unit:
Cassette mechanism is applied for paper setting. So, recording paper is easily changed and
will be set in the unit.

(D) Thermal printing method require little maintenance:
Thermal printing method will require less mechanically-moving parts than other method.
So, the unit will work without noise and will require very little maintenance.

(DR-200N and DR-100N can be used in either vertical or horizontal position.)

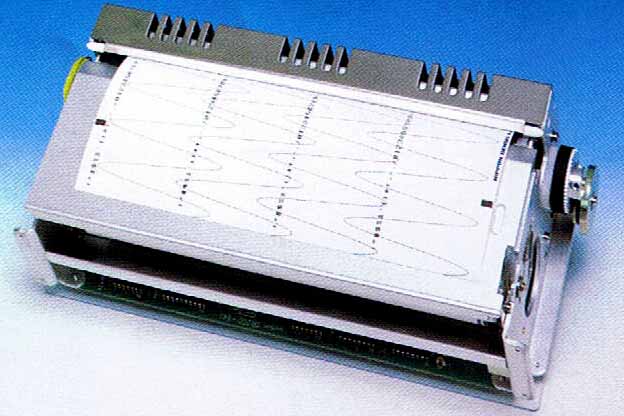

MODEL DR-200N:
The largest model in our line-up. It will accept 210mm wide paper (recording width 204mm).
Analog recording will be performed upto four channels. ANK characters will be printed
by 100 per line and at the speed of 400cps.

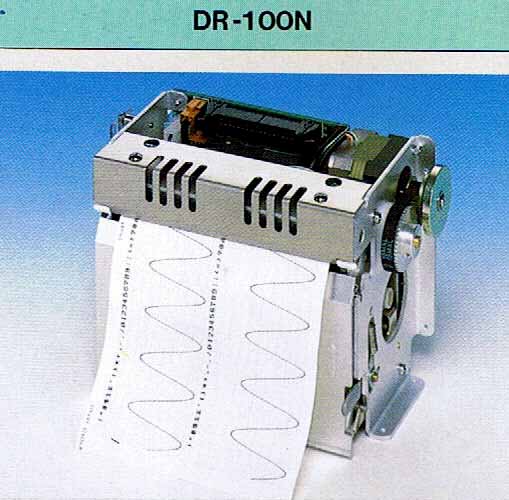

MODEL DR-100N:
Medium size model in our line-up. It will accept 114mm wide paper (recording width 102mm).
Analog recording will be performed upto three channels. ANK characters will be printed
by 50 per line and at the speed of 200cps.

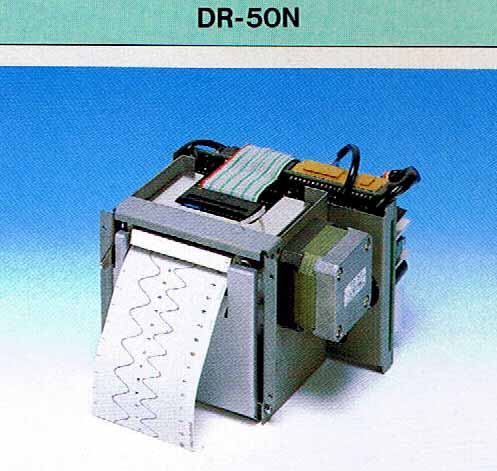

MODEL DR-50N:
The smallest size model in our line-up. It will accept 54mm wide paper.
Analog recording will be performed with one channel in two. ANK characters will be printed
by 27 per line and at the speed of 120cps.
